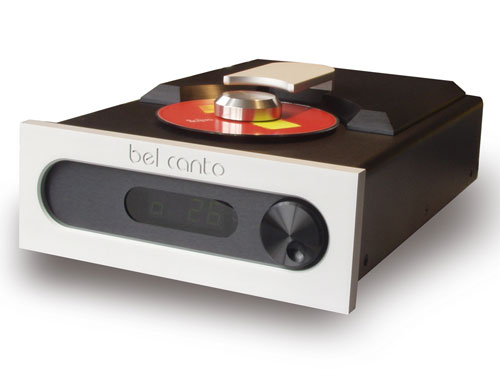

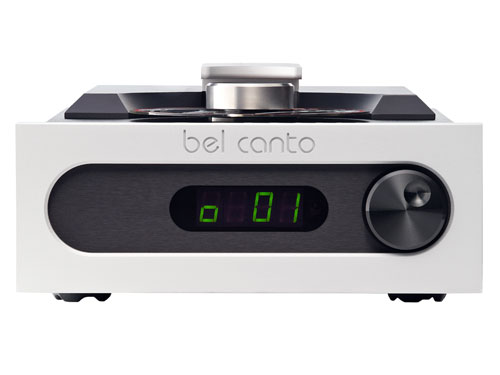

Bel Canto e.One CD2
|
|

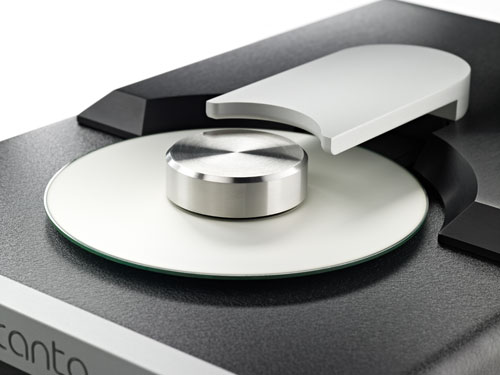

The shortest path to sonic purity. The CD2 provides uncompromising playback of your treasured CD collection. Using the CDPro2M professional top loading CD mechanism as the core of the design, the CD2 provides the best access to the source of digital music both in audio data retrieval and mechanical reliability.
With the latest generation of Sample Rate Converters and the Bel Canto Ultra-Clock™ circuit, the CD2 is the perfect companion source for supplying digital data to any Bel Canto DAC.

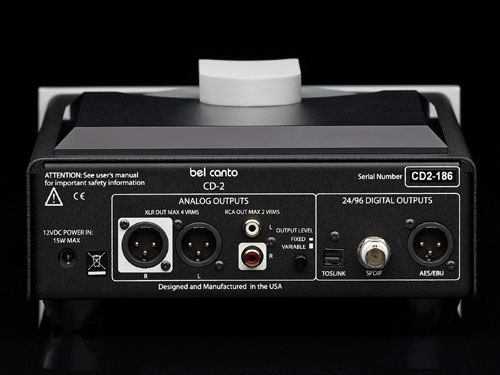

High-performance RCA and XLR audio outputs with selectable level control enable you to directly drive any amplifier for the ultimate in compact, high performance CD playback.
|
| Technische Daten: |
|
Disc Compatibility:
|
CD-DA (Red Book IEC908), CD-R and CD-RW discs
|
|
Digital Outputs:
|
|
|
Maximum Data Rate/Bit Depth:
|
44.1kHz/16bit
|
|
Digital Output types:
|
AES/EBU XLR, SPDIF BNC, TOSLINK
|
|
AES/EBU Digital Output Level:
|
2.7V p-p
|
|
PDIF Digital Output Level:
|
1.2V p-p
|
|
All Digital outputs are galvanically isolated
|
|
Analog DAC Outputs:
|
|
|
Data Rate/Bit Depth:
|
192kHz/24bit
|
|
Output Levels:
|
Single Ended RCA 2Vrms, Balanced XLR 4Vrms
|
|
Dynamic Range:
|
112dB A-Weighted
|
|
THD+N:
|
<0.002%
|
|
Output Impedance:
|
RCA 100 ohms, XLR 200 ohms
|
|
Frequency Response:
|
20Hz-20Khz +/-0.1 dB
|
|
Ultra-Clock:
|
|
|
Accuracy:
|
0.0001%
|
|
Jitter:
|
2 ps rms
|
|
General:
|
|
|
Slow roll-off linear phase digital filter
|
|
|
Fixed or adjustable analog output
|
|
|
External regulated power supply
|
|
|
CD-Pro2LF mechanism
|
|
|
Power Draw:
|
5W
|
|
Power Requirement:
|
100-120VAC, 220-240VAC 50/60 Hz
|
|
Dimensions:
|
8.5” W x 12.5” D x 3.5” H (216 mm x 318 mm x 88 mm)
|
|
Weight:
|
18lbs. (8.2 kg)
|
|
External Power Supply:
|
|
|
IEC 3-prong grounded plug
|
|
|
Class II power supply:
|
100-240VAC 50/60 Hz 0.5A
|
